Post-Processing Page for detection

The Post-Processing page on Qualviz.ai provides tools to refine and optimize segmentation results. This documentation outlines the features and functionalities of the Post-Processing Configuration Panel.

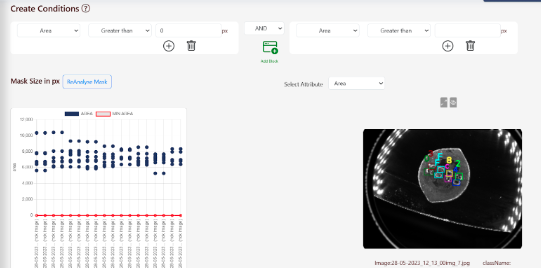

Post-Processing Configuration Panel

The post-processing panel allows users to define filtering rules to fine-tune segmentation results and achieve the desired outcomes.

Condition Filters

• Dropdown Menus for Conditions

  • Area: Filter detected objects based on their size.
  • Height: Filter objects by their height.
  • Width: Filter objects by their width.
  • Location: Filter objects by their position within the image.

• Comparison Operators Includes options like:

  • Greater than
  • Less than

• Threshold Input Field Enter numerical thresholds to define filtering conditions.

  • For example:
    • 2000 px for Area
    • 50 px for Height or Width

• AND/OR Logic Use logical connectors to combine multiple conditions for advanced filtering rules.

  • Add/Delete Conditions

    • Add Conditions: Use the "+" Button to add additional filtering conditions as needed.
    • Delete Conditions: Use the Trash Icon to remove specific conditions from the filter set.

Benefits of the Post-Processing Configuration Panel – Detection

By using the Post-Processing Configuration Panel, users can:

• Refine Detection Results: Filter out false positives or low-confidence detections using customizable rules.
• Optimize Outputs: Tailor detection results to meet specific application needs and accuracy requirements.
• Save Time: Automate output refinement with conditions like confidence thresholds, object count limits, or class-based filters.

These tools ensure that post-processing is efficient, accurate, and tailored to individual project needs.
